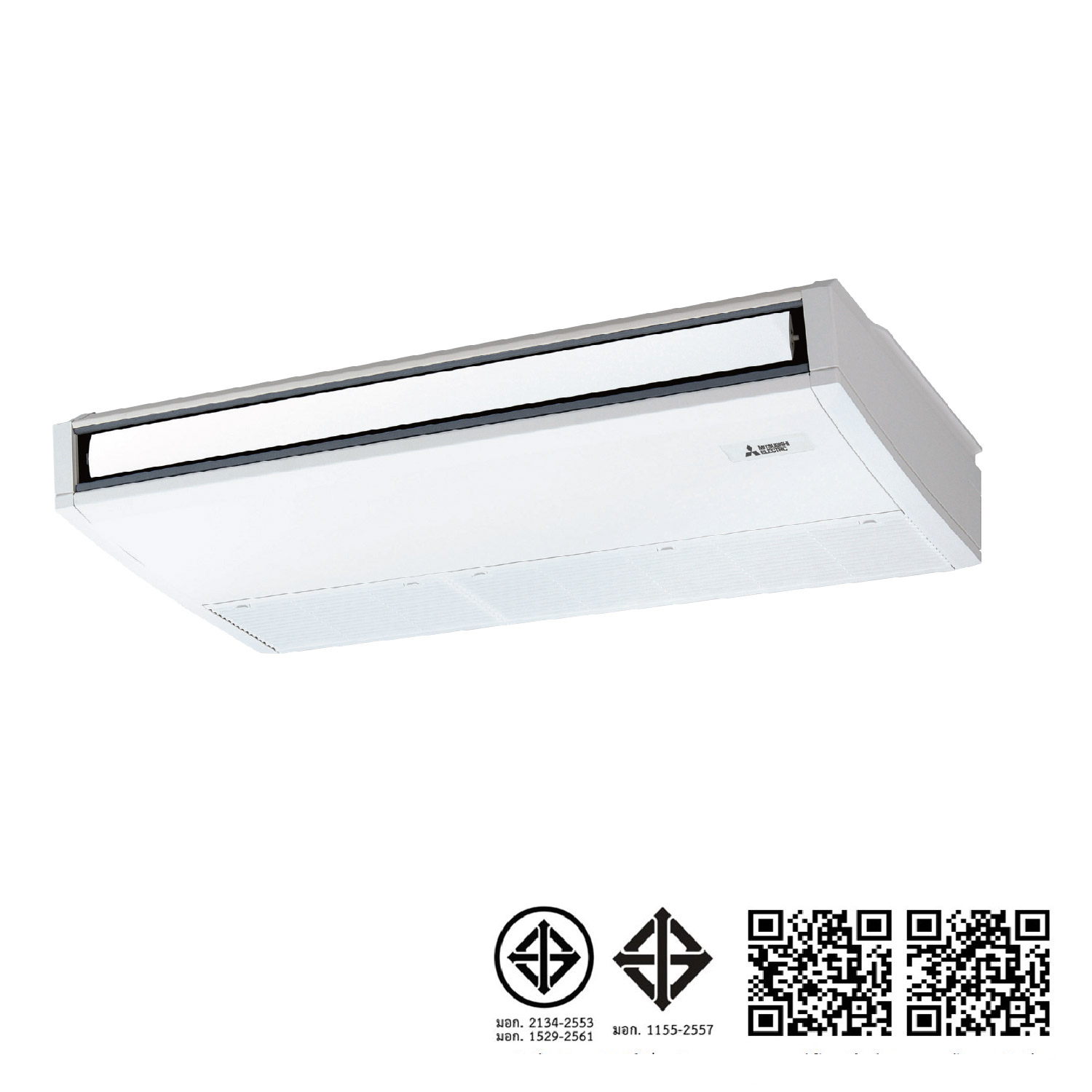

PCY SERIES (PCY-M36KAL2)
PCY SERIES
PCY-M36KAL2
รุ่นแขวนใต้ฝ้าเพดาน , ขนาด 36,167 BTU , ระบบ Inverter , ฉลากประหยัดไฟเบอร์ 5 , น้ำยา R32
สี : สีขาว
print
MODEL
PCY-M36KAL2
Cooling capacity (BTU/h)
36,167
SEER (Btu/h/W)
16
EGAT level 5
ฉลากประหยัดไฟเบอร์5
Cooling : Capacity Rated (kW)
10.6(4.0-10.6)
Heating : Capacity Rated (kW)
Power Supply
1ph, 220V, 50Hz
Microprocessor Control
Automatic Temperature Control
Timer Switch

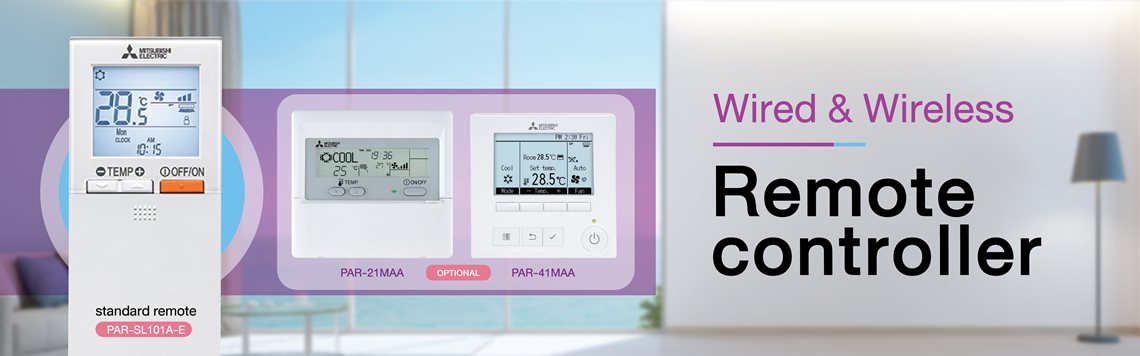

Remote Control Switch

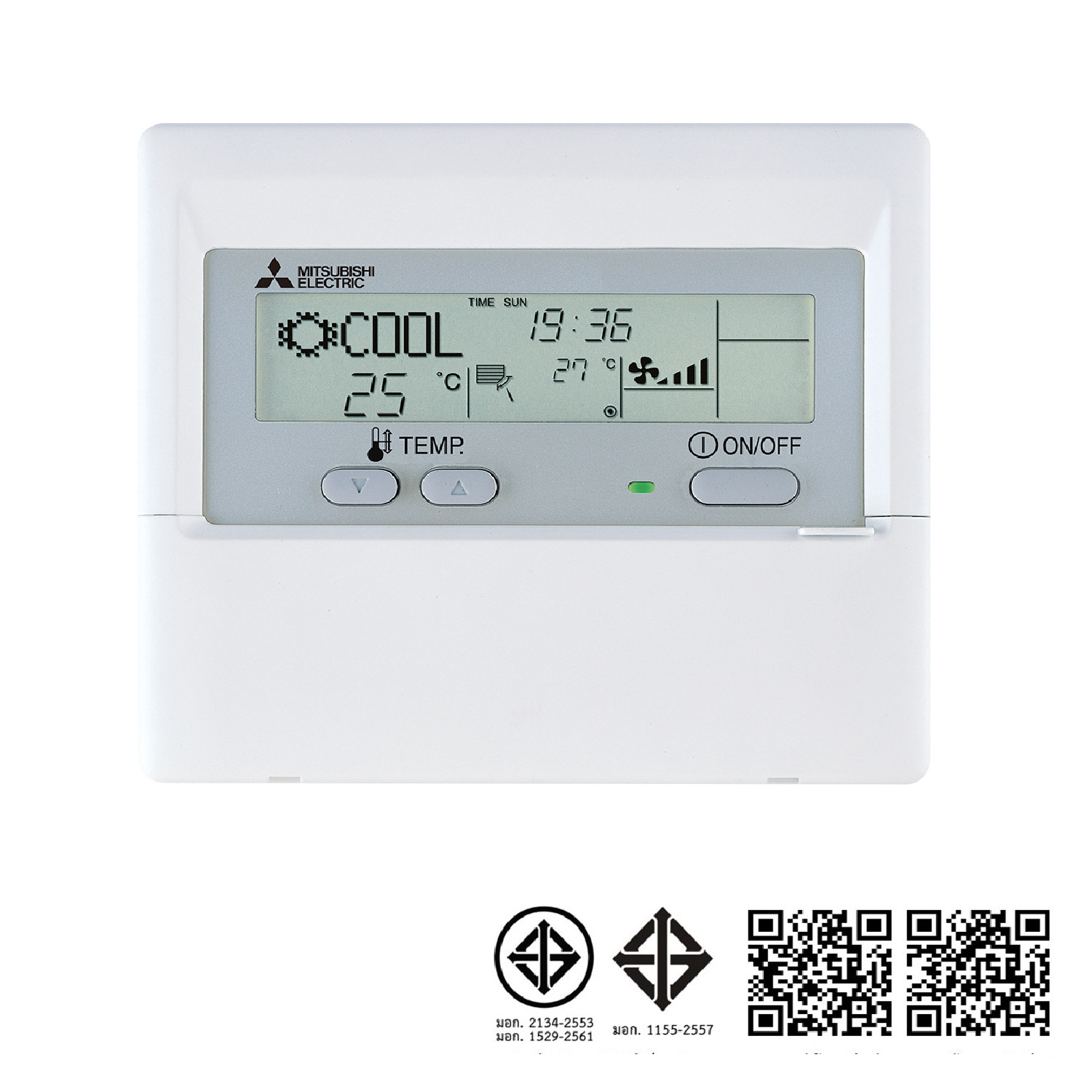

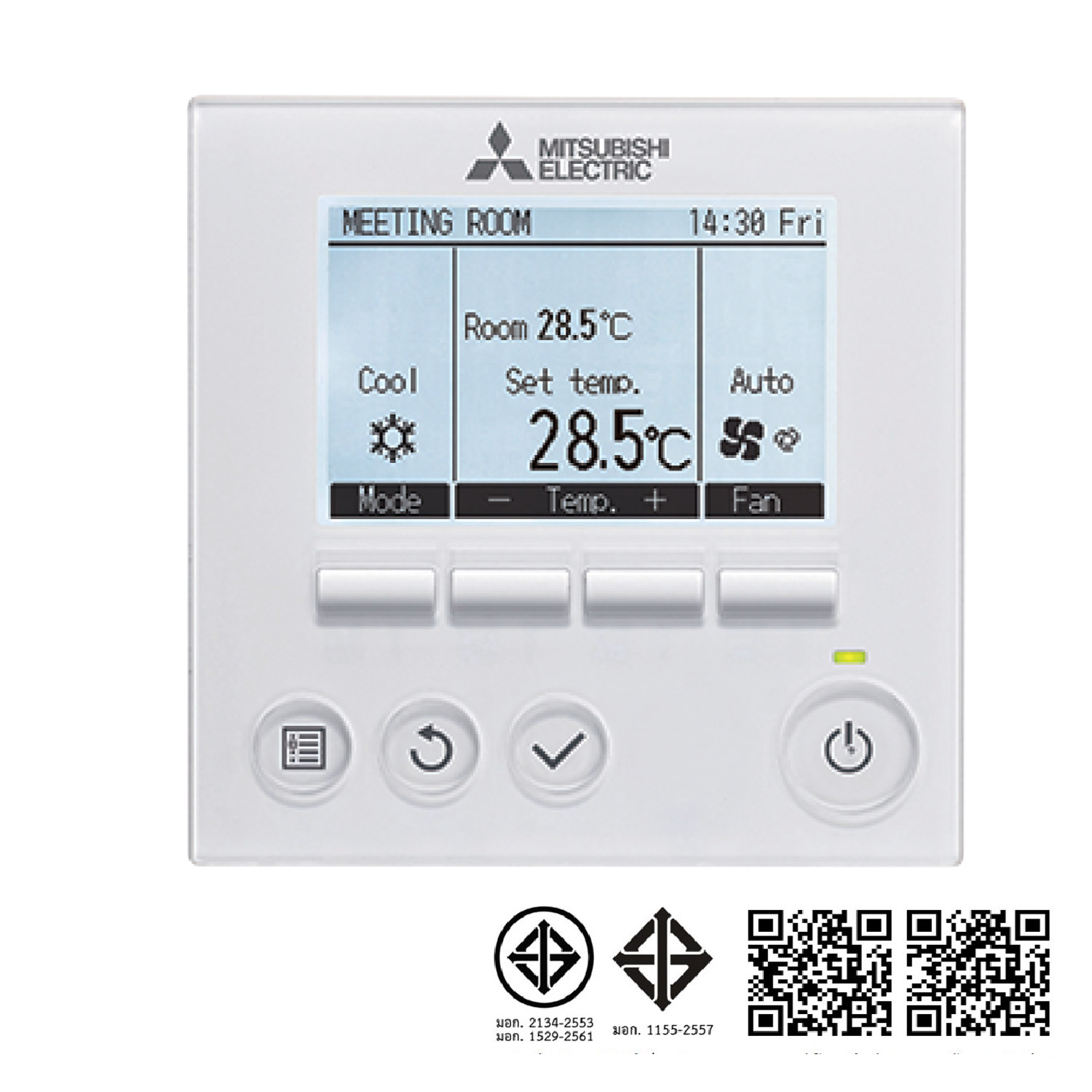

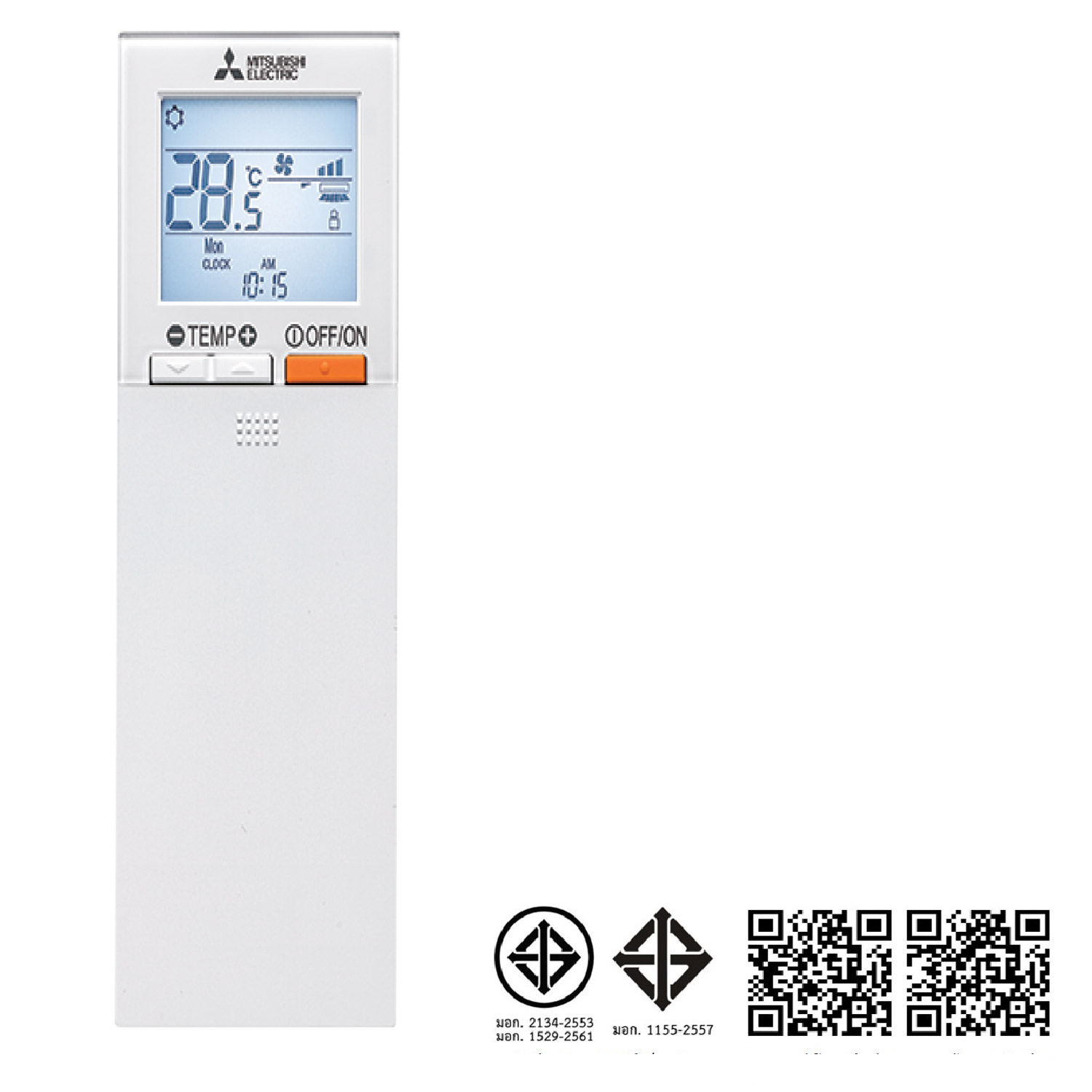

Wireless/Wired(Option)
Indoor Fan Speeds
4 Step+1 AUTO
Blow Fan Indoor
Blow Fan Outdoor
Dimensions Indoor (H x W x D)
230 x 1,600 x 680 (mm.)
Dimensions Outdoor (H x W x D)
880 x 840 x 330 (mm.)
Weight Indoor
37
Weight Outdoor
44
Piping Size : Liquid (mm.in)
9.52(3/8)
Piping Size : Gas (mm.in)
15.88(5/8)
Piping Size : Max.Length / Max.Height (m)
50/30
Refrigerant
R32
Warranty
รับประกันแผงคอล์ยร้อน-คอล์ยเย็น 1 ปี/คอมเพรสเซอร์ 5 ปี/อะไหล่ภายในตัวเครื่อง 1 ปี
