Mitsubishi Electric
Ceiling-cassette 4-Way Airflow Type
PL Series รุ่นฝังในฝ้าเพดาน

Elevate your space with a design...
that seamlessly blends elegance
and cooling comfort,
crafted exclusively for you.

Redefine your living space with understated luxury and comprehensive functionality, creating perfect harmony and joy in every corner of your home.

Genius Function

Fully equipped with functions that comprehensively meet user needs
Complete Design & Easy Control

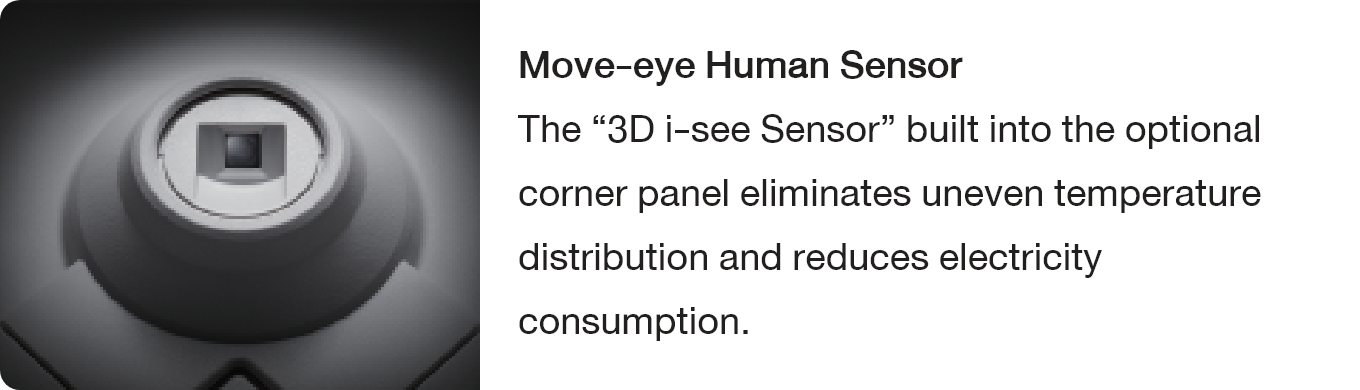

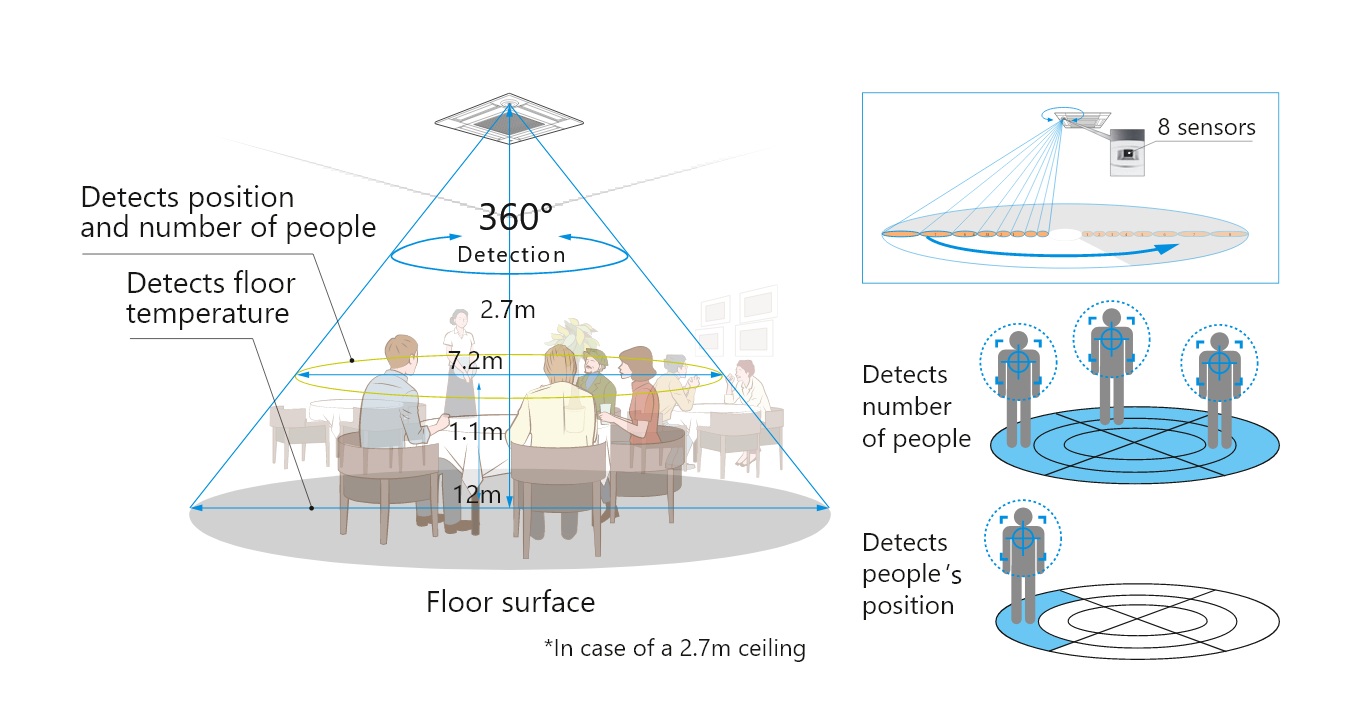

Highly accurate motion detection

A total of eight sensors rotate a full 360° in 3-minute intervals. In addition to detecting body temperature, our original algorithm also detects the number of occupants in the room and their positions.

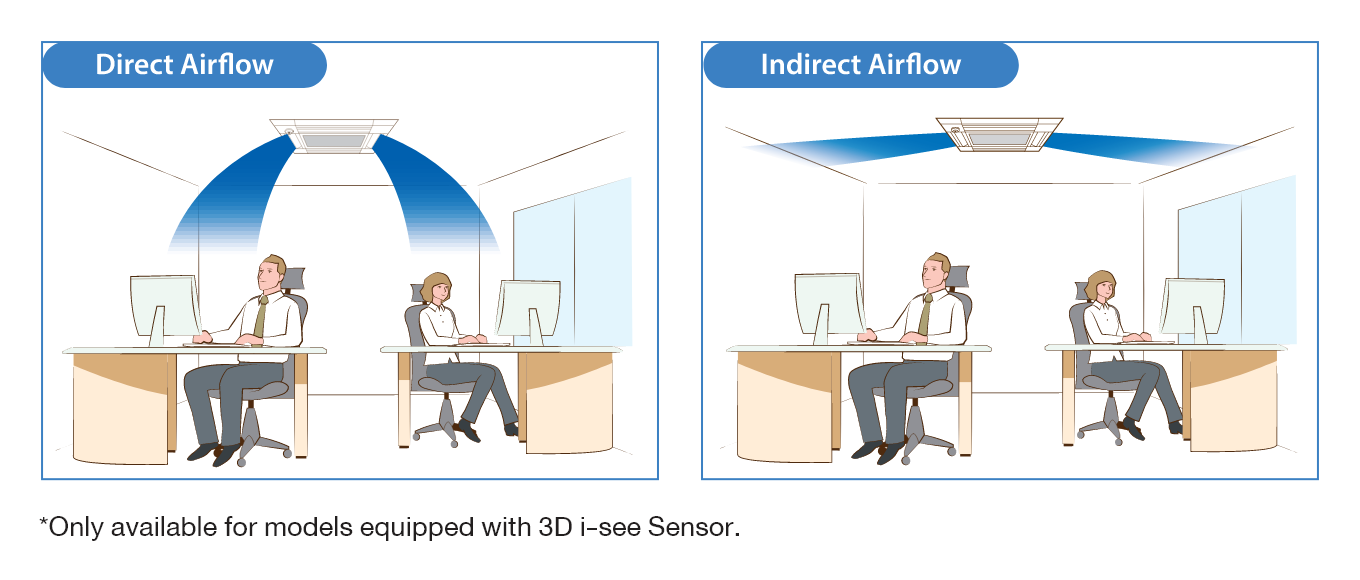

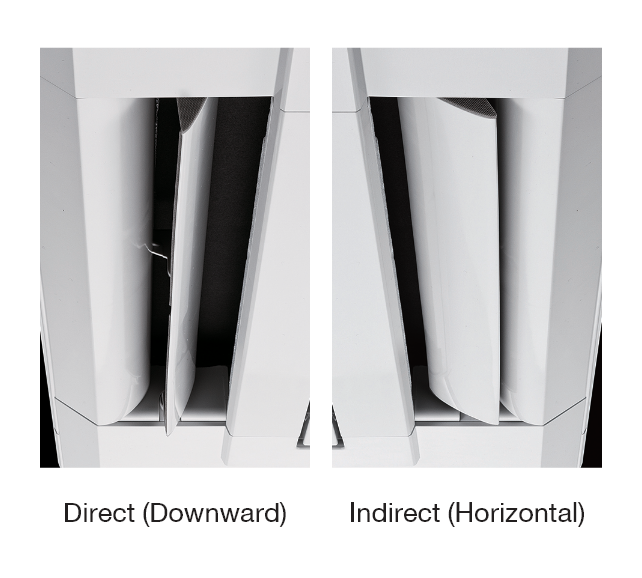

Direct/Indirect settings
Saves energy while keeping a comfortable effective temperature by automatically switching between ventilation and cooling. When a pre-set temperature is reached, the air conditioning unit switches to swing fan operation to maintain the effective temperature. This clever function contributes to keeping a comfortable coolness.

Vane Control Applications

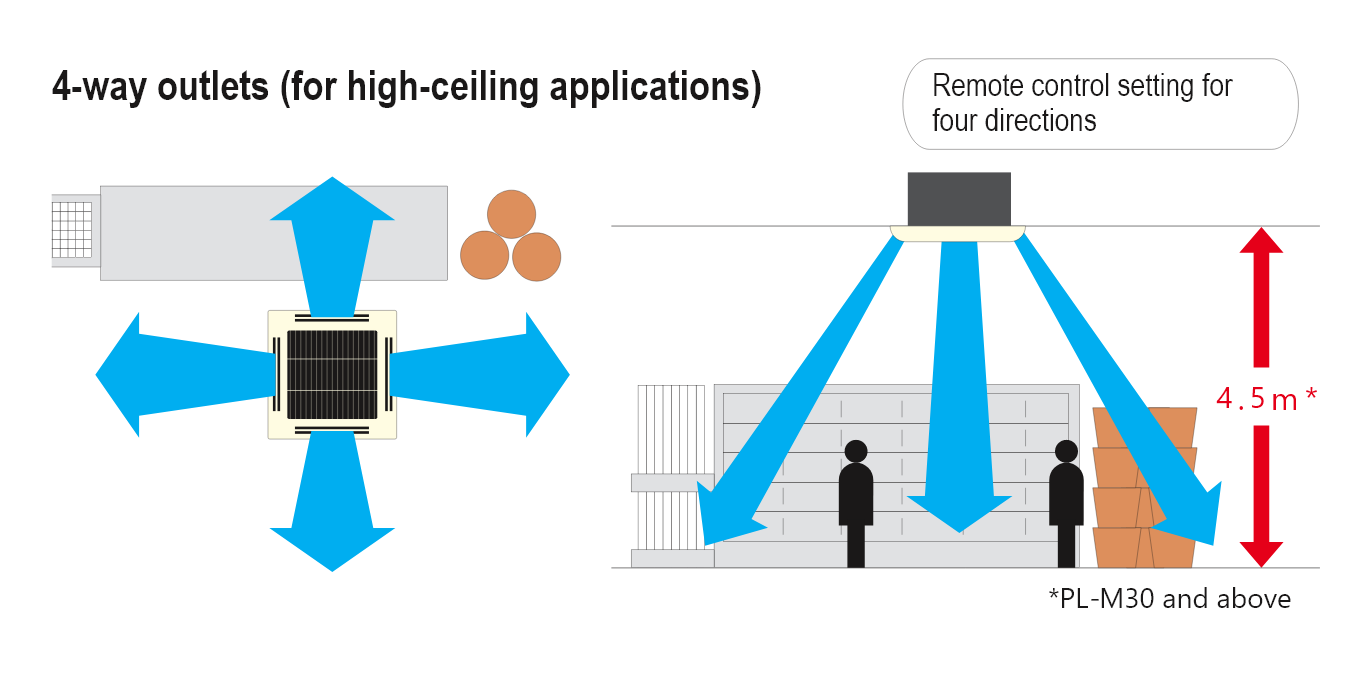

For Shopping Malls
Wide airflow coverage down to the floor even in expansive spaces like large factory-outlet centers or shopping malls with high ceilings.

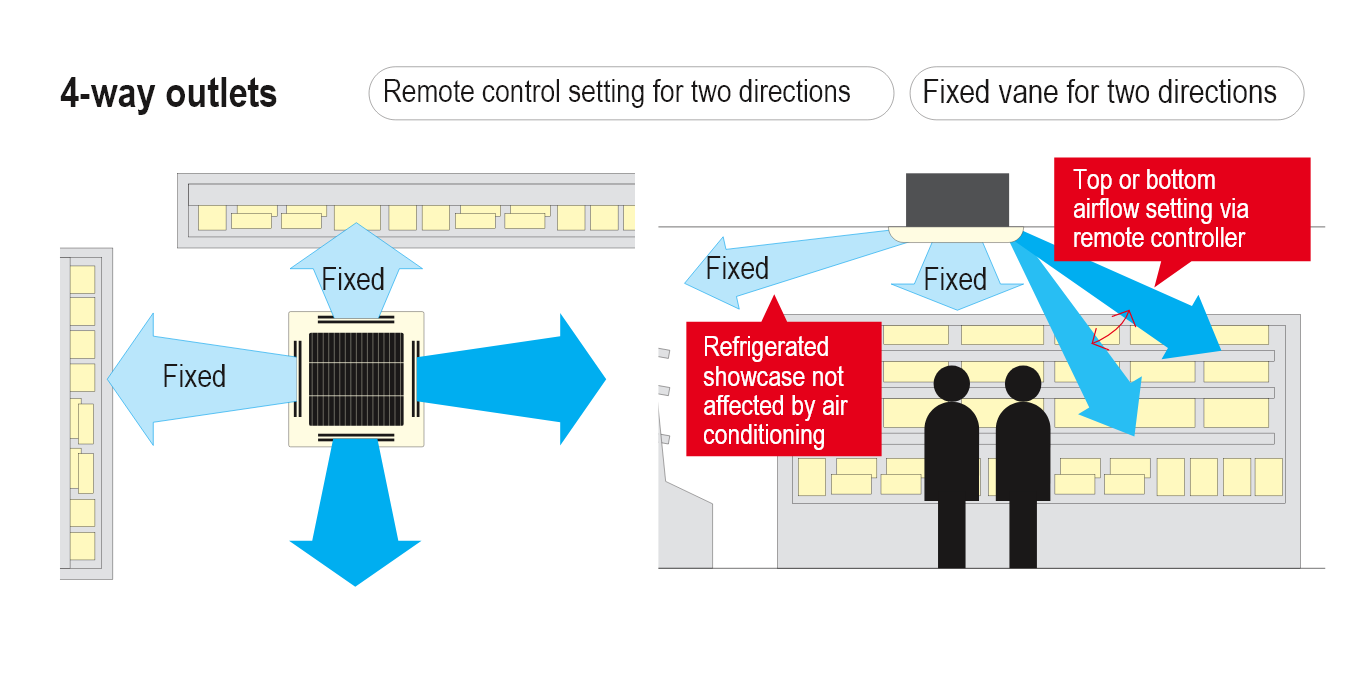

For Retail Outlets
These units are ideal for maintaining constant temperatures in environments that have equipment such as refrigerated showcases.

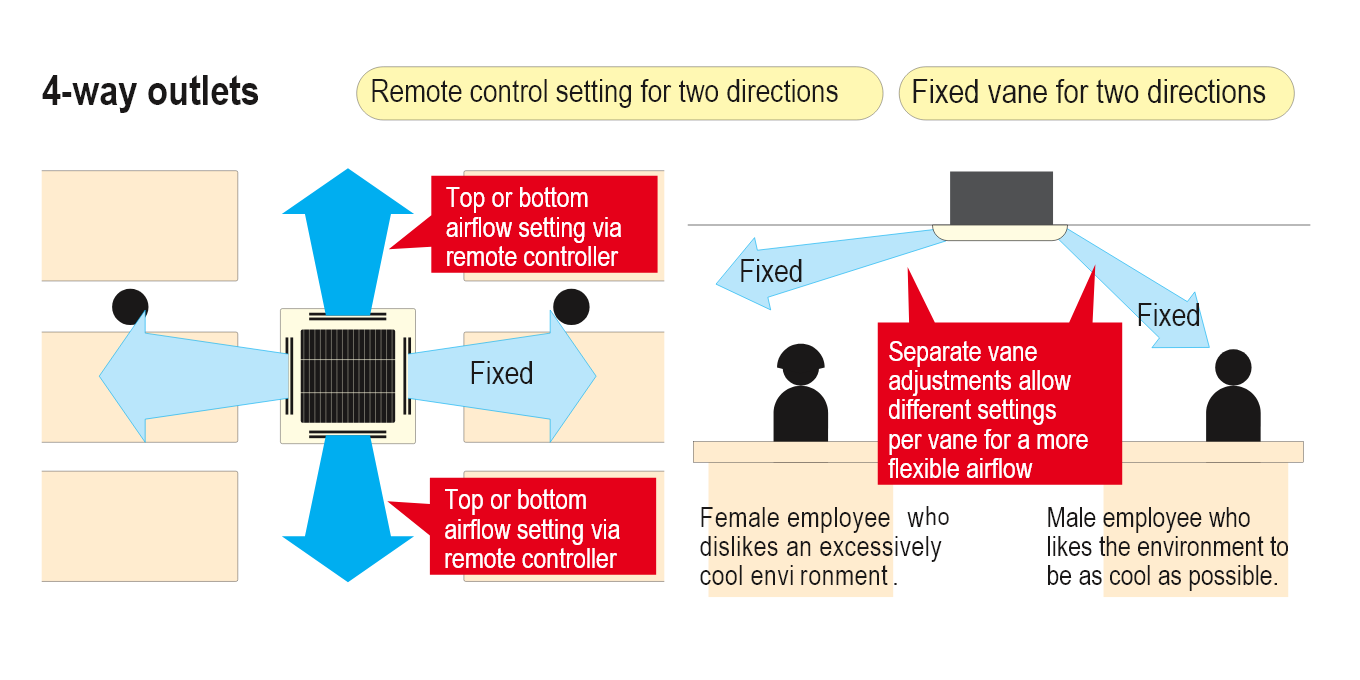

For Offices
Flexible and pleasant airflow eliminates annoying drafts within the office environment.

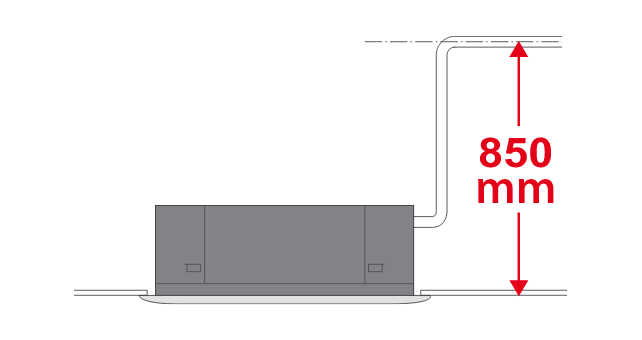

Drain Water Lifting Mechanism
A high-performance drain pump on the drain water lifting mechanism allows the drain water pipe to be routed as high as 850mm from the ceiling surface.

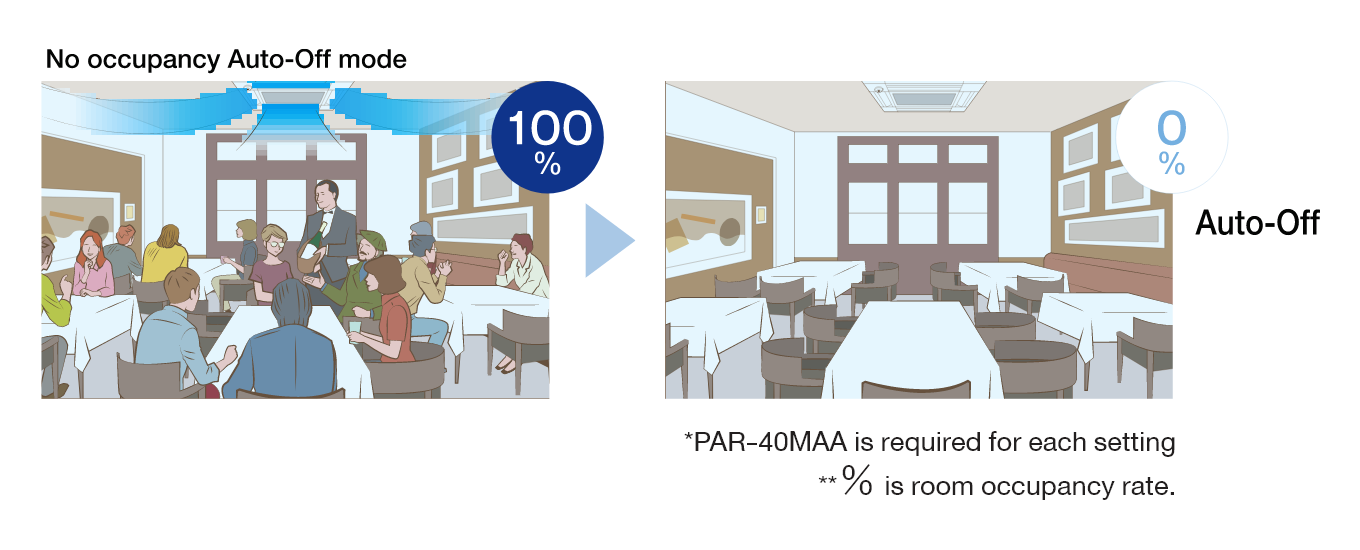

No occupancy Auto-OFF mode

When the room remains unoccupied for a pre-set period of time, the air conditioner turns off automatically, thereby providing even greater power savings. The time until operation is stopped can be set in intervals of 10min, ranging from 60 to 180 min.

Anti-Allergy Enzyme Filter (optional)

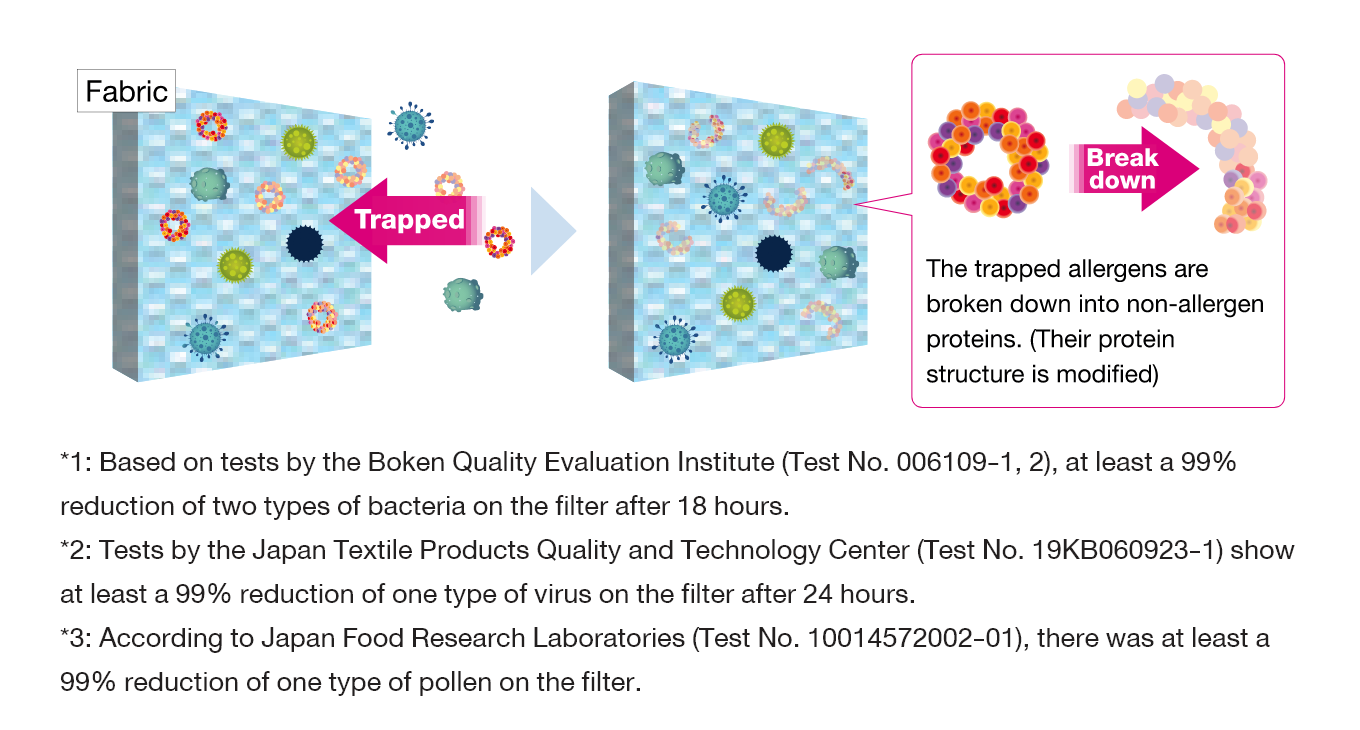

The optional anti-allergy enzyme filter PAC-SK44KF-E contains artificial enzymes to filter out or reduce the level of bacteria*1, viruses*2, and allergens (pollen)*3.

Beautiful square design
The beautiful design harmonizes with any interior, making it ideal for facilities such as offices and retail stores.
“Pure White” Colour Matches Interior Decor

The colour “Pure White” has been introduced for the decoration panel and wired remote controller so as to blend in with any interior decor.

Handy Corner Pocket Design Simplifies Maintenance
By using the handy pockets equipped on the four corners of the grille, maintenance work such as drain pan cleaning and height adjustments can be accomplished without removing the grille.
Quiet Operation
An improved airflow path and powerful high-capacity flow fan contribute to the realisation of quieter operation.

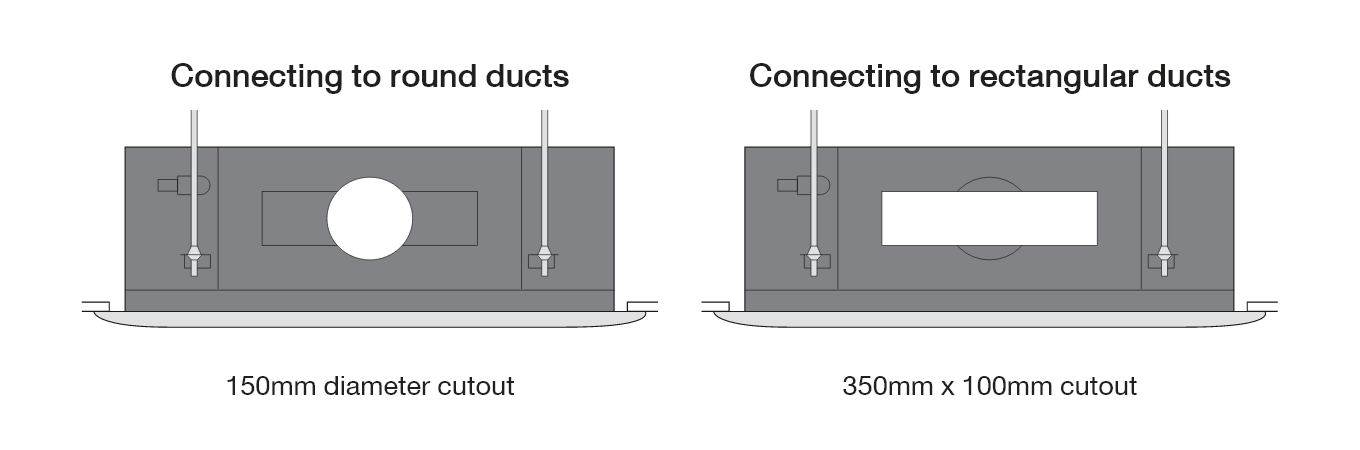

Compatible with Round and Rectangular Ducts

For easy connection to branch ducts, knock-out holes are designed to fit both round and rectangular ducts. Matching the shape of the duct fringe provides more flexibility during installation.

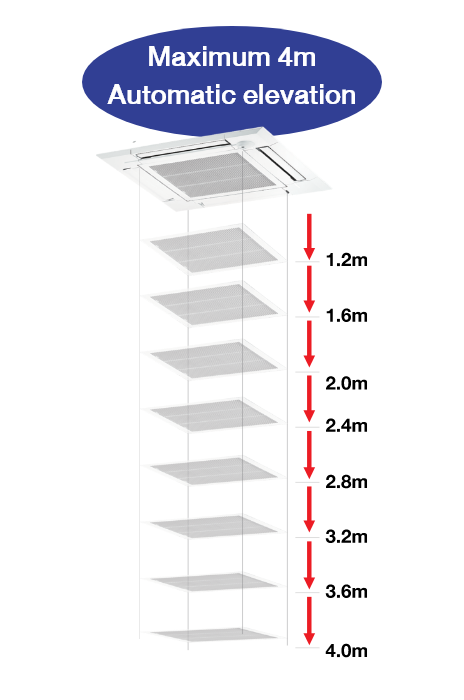

Automatic Grille Lowering Function (PLP-6EAJ)
An automatic grille lowering function is available for easy filter maintenance. Special wired and wireless remote controllers can be used to lower the intake grille for maintenance.
