Super Inverter ( MSY-GZ09VF )
Super Inverter
MSY-GZ09VF

Energy saving 5 stars 3 stars The ultimate cooling technology that comes with great value, saves more energy with ECO EYE SENSOR, a sleek and modern design that fits every decoration.

Download Catalog

User Manual

Download
Revit file

Download
2D CAD
print
- Inverter Provides maximum energy saving efficiency by reducing compressor cycles to achieve cool temperatures.
- Fast Cooling Compare to “Powerful Mode”, new fast cooling mode can boost up compressor to the max frequency in quickest available time.
- Sleep Mode Reduce temperature slightly to support body to release heat while entering sleeping process.
- Dual Barrier Coating is the innovation of Mitsubishi Electric product. Which are coated on the inside with air conditioning parts. To reduce the capture of dust and oil mist and smoke cigarettes problems.

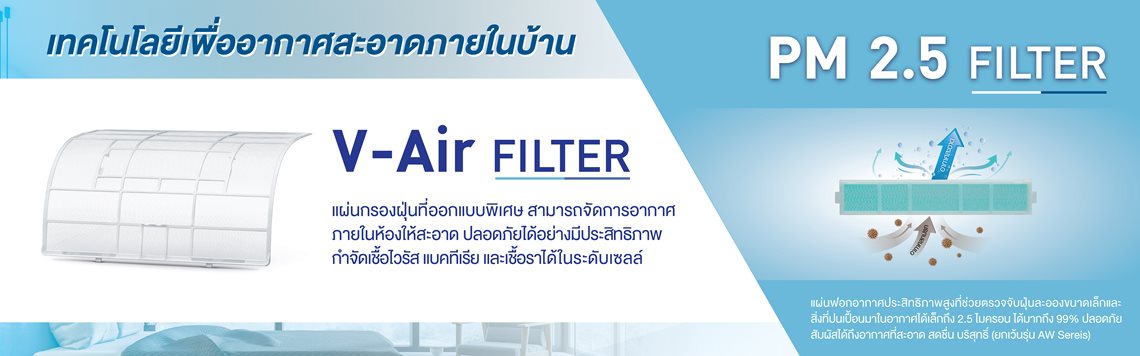

- V Air Filter New dust filter. The specially designed molecular chemical coating, that has a reaction to eliminate viruses, common viruses, bacteria, molds, unpleasant odors, etc.
- PM 2.5 Technology for clean air Electrostatic filter catches and removes PM2.5 particles when air passes through the filter

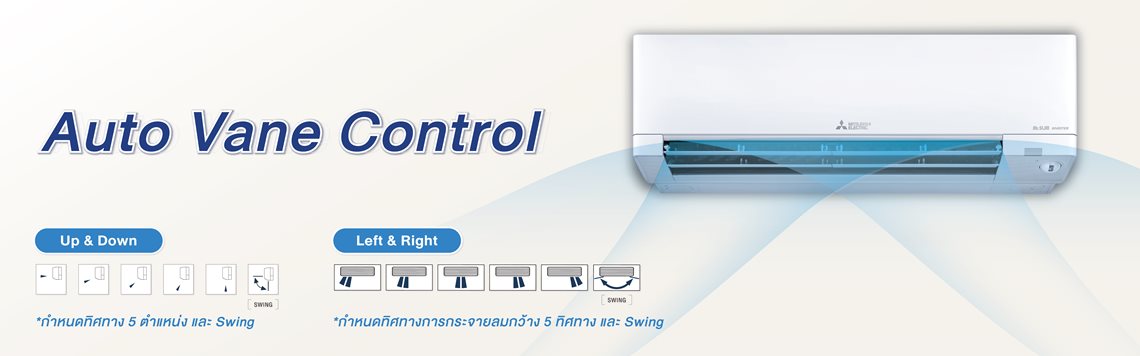

- Auto Vane Control set the wind direction as needed.
- Long Air Flow deliver the wind up to 12 meters.
- Quiet Mode Quiet operation only 18 decibels.

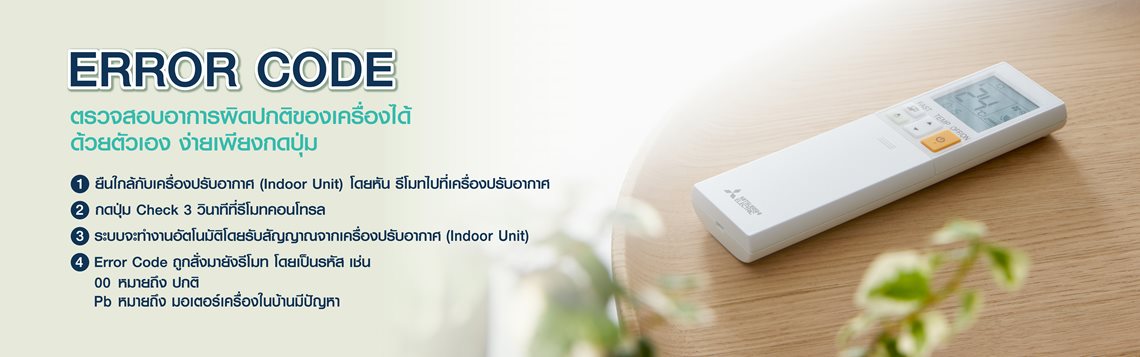

- ERROR CODE easy to check error.
- 24 Hour ON/OFF Timer Scheduled 24-hour pre-programmed. 12 hours in advance.
- Refrigerant R32 is designed to be environmentally friendly the Reduce greenhouse effect. So not to destroy the atmosphere.
- Warranty card 5 years warranty for Compressor. 3 year for Fan coil and Condensing and 1 year for spare parts.


MODEL
MSY-GZ09VF
Cooling capacity (BTU/h)
9,554
SEER (Btu/h/W)
22.06
EGAT level 5
3 STAR
Cooling : Capacity Rated (kW)
2.8 (1.1 - 3.4)
Heating : Capacity Rated (kW)
-
Power Supply
220 V. / Single Phese / 50 Hz
Microprocessor Control
Automatic Temperature Control
Timer Switch
24 Hr. ON / OFF Program
Remote Control Switch
Wireless
Indoor Fan Speeds
5+AUTO
Blow Fan Indoor
Line Flow Fan
Blow Fan Outdoor
Propeller
Dimensions Indoor (H x W x D)
280 x 838 x 239
Dimensions Outdoor (H x W x D)
454 x 660 x 235
Weight Indoor
9.9
Weight Outdoor
20
Piping Size : Liquid (mm.in)
6.35 (1/4)
Piping Size : Gas (mm.in)
9.52 (3/8)
Piping Size : Max.Length / Max.Height (m)
20/12
Refrigerant
R32
Warranty
3 Years IN/OUT door heat exchanger , 5 Years Compressor , 1 Year General Part.
