PLY-SERIES(PLY-M48EA2)
PLY-SERIES
PLY-M48EA2

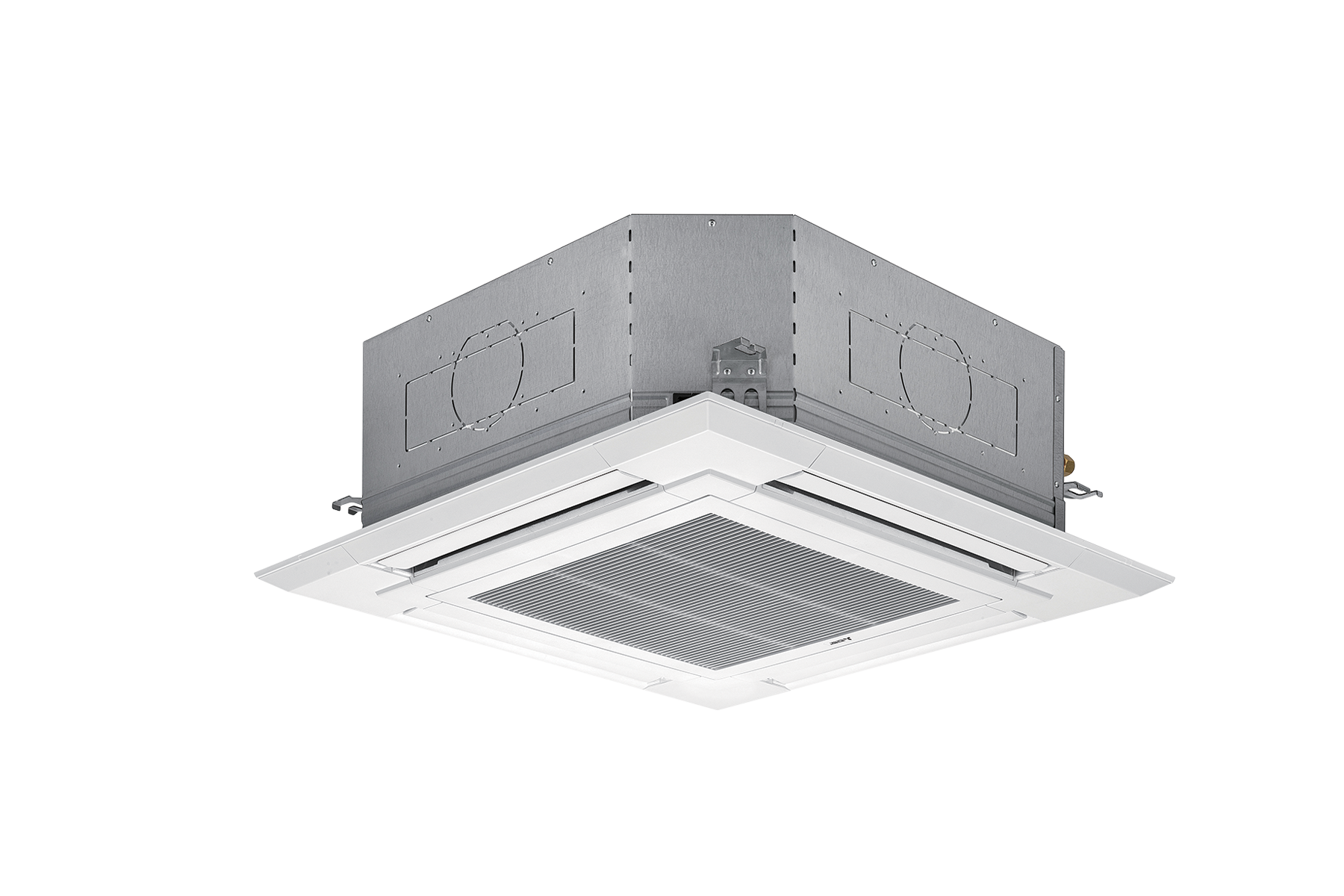

Ceiling-cassette , 48,000 BTU ,  Inverter Series ,R32 refrigerant
สี : Pure White

Download Catalog

Download
2D CAD
print
- Pure white is adopted for the unit colour; white expressing the essence of cleanliness and easily matching virtually all interior décor.
- An improved airflow path and powerful high-capacity flow fan contribute to the realisation of quieter operation.
- Wireless and Wired remote controller
- The airflow directions of the four vanes can each be adjusted independently.
- 3D Move-eye Human Sensor By measuring the inlet temperature and floor temperature, temperatures felt by the human
body (sensible temperature) are computed.
- A built-in drain pump enables drain piping to be raised.
- 50 metre refrigerant pipe.
- Centralised controler
- R32 refrigerant
- Inverter Series
MODEL
PLY-M48EA2
Cooling capacity (BTU/h)
48,000
SEER (Btu/h/W)
15
EGAT level 5
LABEL NO.5
Cooling : Capacity Rated (kW)
14.1(7.0-14.1)
Heating : Capacity Rated (kW)
Power Supply
1ph, 220V, 50Hz
Microprocessor Control
Automatic Temperature Control
Timer Switch
Remote Control Switch
Wireless/Wired
Indoor Fan Speeds
4 Step +1 AUTO
Blow Fan Indoor
Blow Fan Outdoor
Dimensions Indoor (H x W x D)
298 x 840 x 840 (mm.)
Dimensions Outdoor (H x W x D)
981 x 1050 x 330(mm.)
Weight Indoor
27
Weight Outdoor
63
Piping Size : Liquid (mm.in)
9.52(3/8)
Piping Size : Gas (mm.in)
15.88(5/8)
Piping Size : Max.Length / Max.Height (m)
50/30
Refrigerant
R32
Warranty
1 Years IN/OUT door heat exchanger , 5 Years Compressor , 1 Year General Part.
